Racing Mower Parts - Rear Axle

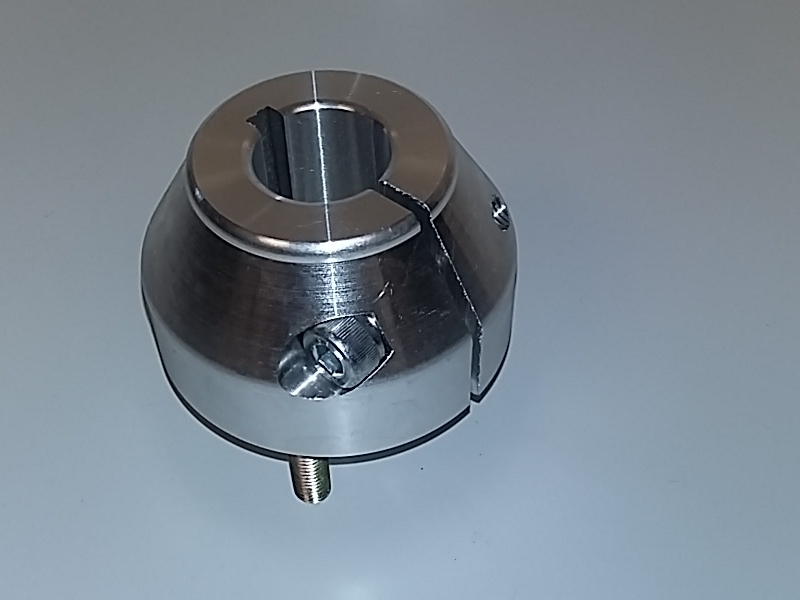

Aluminium 25mm x 50mm wide, 6mm keyed rear hub. Popular rear hub for group 3 and 4 / lawnbug and tractor. Standard 58mm PCD, fits many kart and steel rims.

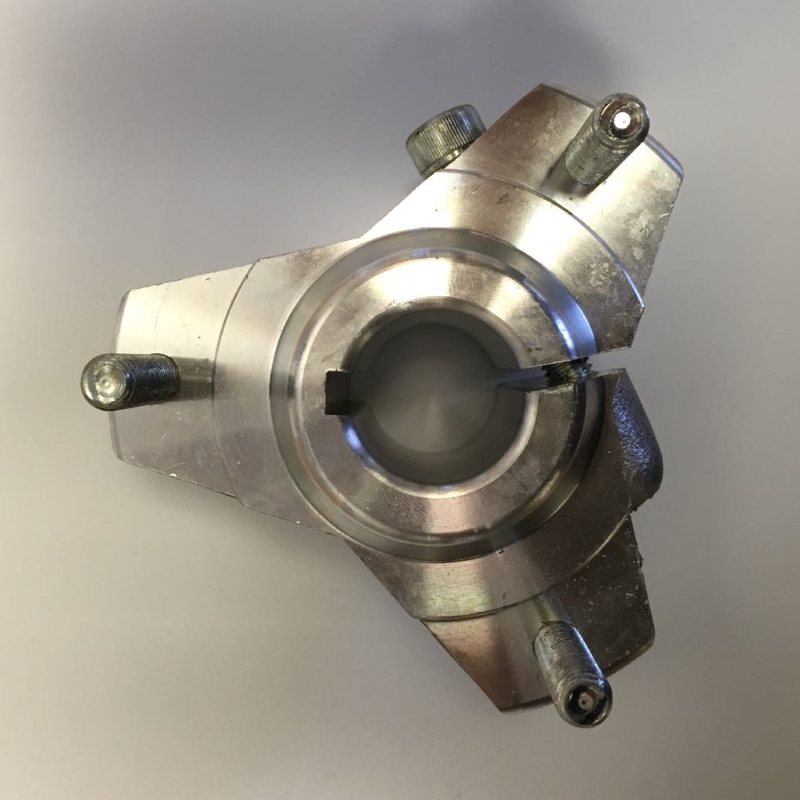

25mm keyed rear hub for split and steel rims. 6mm keyway. 89.9mm PCD.

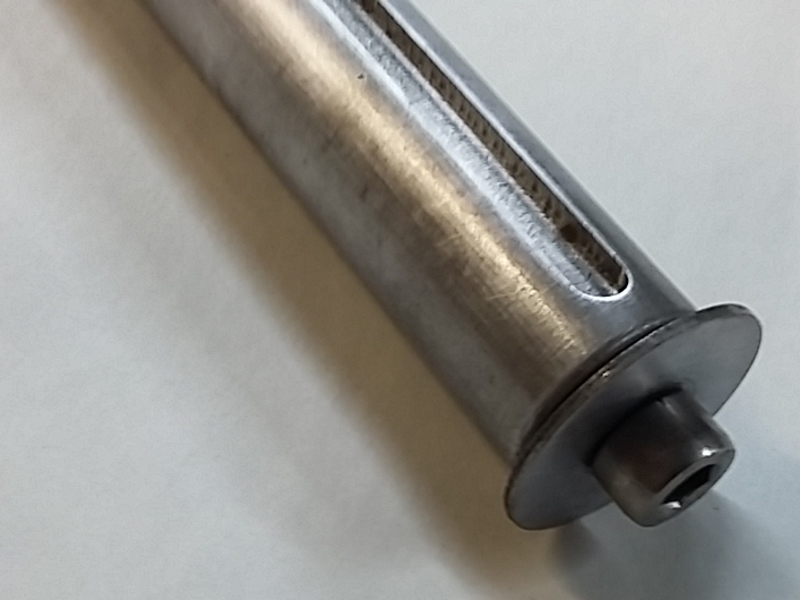

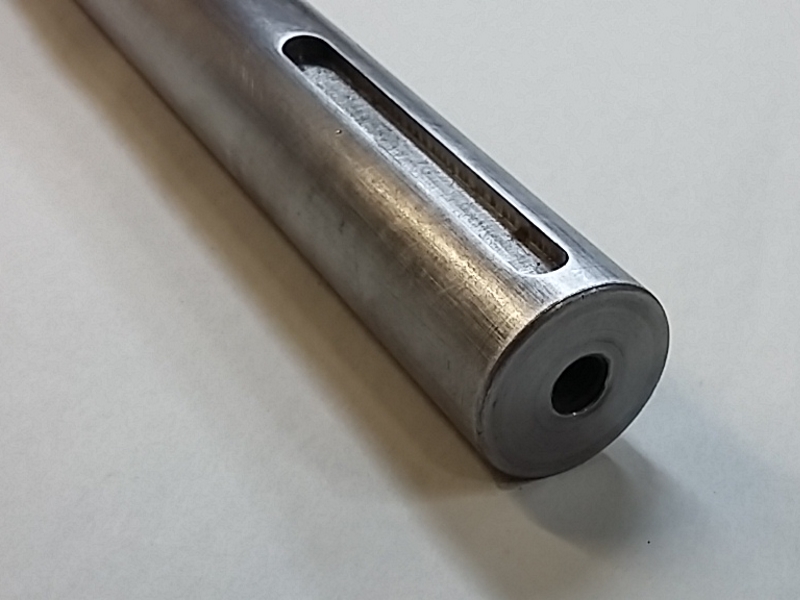

25mm rear axle, made from EN8 bar, the grade which we believe provides the best strength for the money. Pocketed keys, to stop key way slippage. Tapped ends, to allow washer fitment, to stop hubs sliding off, should they come loose. These can be used on group 3 or 4.
Please contact us, after purchase to discuss key way positions and axle length.

Note: These are machined to order, please allow for a 2 ~ 3 week lead time. Axle includes a maximum of 3x 6mm key ways, 1x 8mm key ways. Key ways over 75mm in length may incur additional charges.

T drive Spacer to fit Comer T drives. Machined from EN8, with four holes to aid plug welding to axle.

T drive Spacer to fit Bondioli and Pavesi T drives. Machined from EN8, with four holes to aid plug welding to axle.

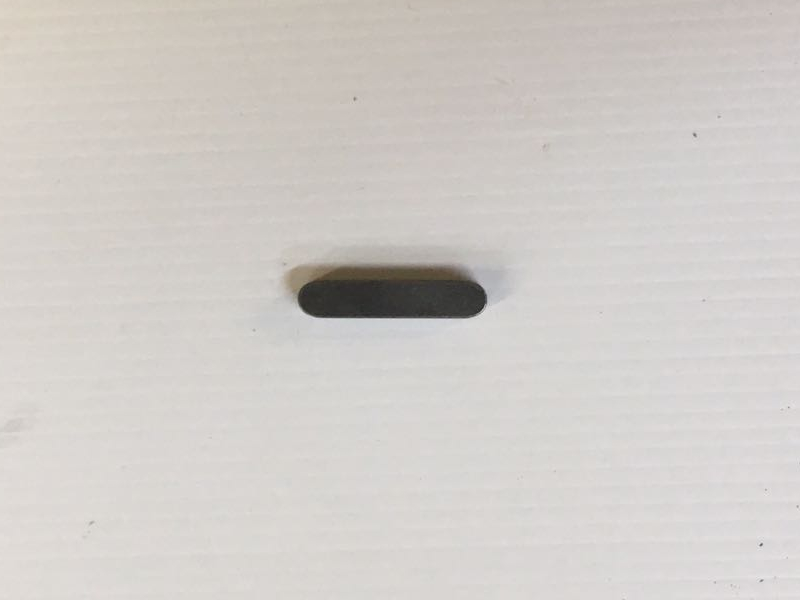

High quality C.45 key steel for rear axle T-drive key, 40 x 8 x 7mm, will need to be shortened and fitted to suit your axle key way.

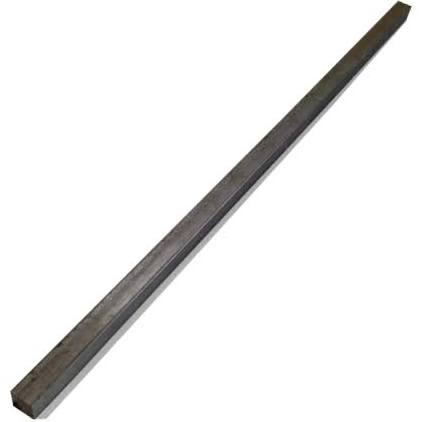

Brake and hub key steel. EN8 6mm x 6mm. Supplied in 100mm lengths.

25mm pillow block bearing, self aligning, popular bearing for mounting rear axles.
